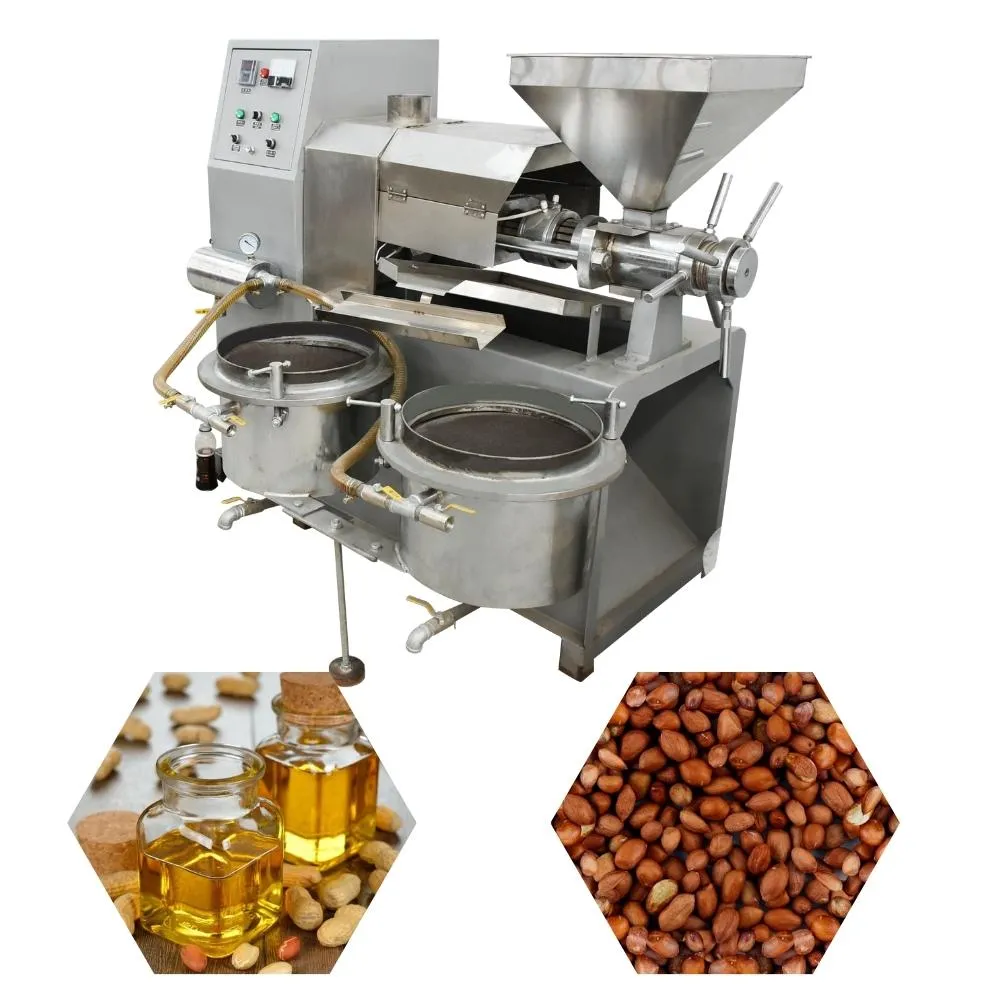

Screw Type Sunflower Seed Oil Press Machine

The screw oil press is mainly composed of electrical control, automatic heating, adjustment, transmission and vacuum oil filtering and other components. The pressing screw is carburized by alloy steel to enhance the surface hardness and wear resistance; the pressing row is ground by a surface grinder to ensure the accuracy of the oil line and improve the oil yield; the standard components such as power distribution, vacuum and automatic heating are selected from domestic well-known Brand, optimize machine configuration; the surface of the machine is treated with stainless steel and chrome plating, in line with food hygiene standards

Your Machine Requirements

Features

Working Principle

When the Sunflower Seed Oil Press Machine is running, the processed oil enters the press chamber from the hopper. The material embryo is continuously pushed inward by the pressing screw for pressing. Because the material embryo is in motion in the pressing chamber of the oil press, under the condition of high pressure in the pressing chamber, a great frictional resistance is generated between the material embryo and the screw press, the material embryo and the pressing chamber, so that the It can cause friction between the micro-materials of the raw material and cause relative movement, so that the oil in the oil is squeezed out, the oil overflows from the oil line, and the cake is pushed out from the cake head and the cake outlet. When the spilled oil flows into the oil filter barrel through the oil pan, the vacuum pump draws out the air in the barrel. Negative pressure is formed in the barrel, the oil is pumped into the barrel through the filter cloth, and the oil residue is isolated on the filter cloth, and the pure oil is obtained.

Tech Specs

Frequently Asked Questions

What material your Sunflower Seed Oil Press Machine can press?

Wide range of uses ---- multi-purpose machine, squeeze more than 20 kinds of oil crops such as peanut, sesame, rapeseed, soybean, oil sunflower, flax, etc. Three-stage pressing, one pressing. Press the oil out of the material and separate the chaff from the oil then get clean oil.

What's the spare parts of your screw oil pressing machine?

Heating pipe,Round Nut, Snail, Squeeze, Bearing, There spare parts we have stock on our warehouse, can delivery to customer immediately.

What information I need to advise before you send offer?

You need to tell me which kind of material you want to make and how many kg/h you want. It will be better if you can advise photos of chocolate you want to make.

How long is your delivery time?

15-30 days after receiving your advanced payment and confirmed technical parameters sheet.

The Difference of cold press and hot press?

Hot press need to roasting material first, make the material moisture below 9%, then oil pressing. the oil rate is higher, but the oil is a little dark color. Cold Pressing is pressing the material directly (if the material is too dry, need to add some water in it.) the oil rate is a little lower, need to pressing it again in second time. for cold oil pressing, the oil is more clear.

Pressing process of the screw oil pressing machine?

oil material , frying material, oil pressing , oil filting.

fried peanuts food peanut oil 1200
