automatic peanut brittle making machine
Category: Peanut Brittle Machine

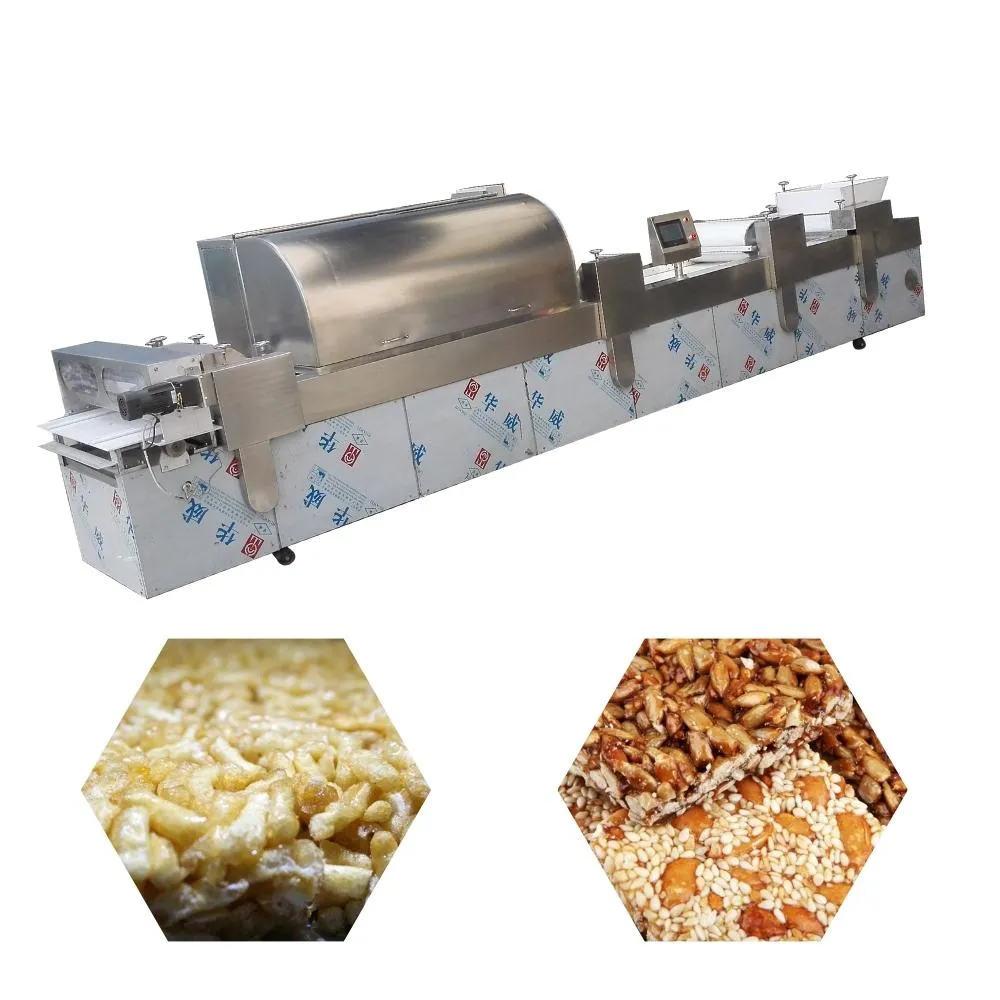

automatic peanut brittle pressing and cutting machine with fan or air conditioner cooling

The peanut chikki making machine is mainly used for cutting chikki, peanut brittle, sesame candy and so on. Fully automatic production, saving manpower and material resources, the industrial machine can be safely used, and can safely produce.

Your Machine Requirements

Features

  • The fully automatic peanut candy forming machine integrates the three processes of mixing, leveling and cutting, realizing the automation and intelligent operation.
  • Structure is designed reasonably, fully automated and easy to operate.
  • High production capacity, the range of capacity is 400-800 kg/h.
  • Complete three steps of transmission, forming and cooling in continuous production.
  • With a number of flat construction,pressed flat,uniform thickness.

Working Principle

The peanut brittle making machine is mainly composed of a blanking mechanism, a flattening mechanism, a cooling mechanism, a cutting mechanism and other components. The motor uses a chain to drive the drive shaft, which drives the stirring and leveling device in the hopper to extrude and feed the material. The conveyor belt runs at the same time. The extruded material is conveyed to the cutting mechanism through the flattening device and the cooling device for material cutting to achieve the purpose of forming.

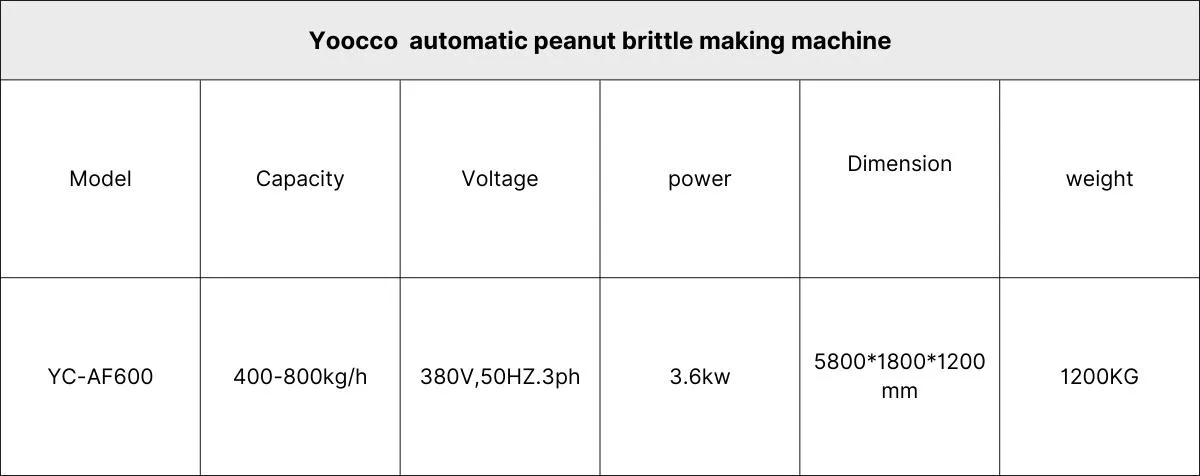

Tech Specs

Frequently Asked Questions

What's the application of your peanut candy making machine?

The automatic cutting machine is mainly used for cutting processing of sachima, egg custard cake, melon seed cake, peanut cake, corn cake, peanut candy, frozen rock candy, mimaitong, etc.

Is there only an ordinary fan for cooling?

The standard configuration is 2 ordinary fans, which can be customized as air-conditioning cooling (the minimum temperature is 0 degrees, and it can be adjusted generally 0-5 degrees

Can we make peanut candies in different sizes, or their special nut bar?

The length can be adjusted directly by the machine, there is no limit to the length, if you customize the width of different sizes, you need to change the whole set of blades, which is the most convenient, the thickness can also be adjusted by the machine, the thickness range is 5-20mm. It can also be customized 30mm, general customers With a thickness of 10mm.

Do you recommend the peanut candy size?

Generally, our customers use these sizes: 2.50 * 2.50 cm, 3 * 7 cm, 4 * 14 cm, 4.5 * 12.5 cm, 5.5 * 15,5 cm, 7 * 15 cm, 8.50 * 18 cm, 7.5 * 16 cm . The width should be at least 13mm, and the thickness should not be less than 5mm.

What material is your machine made of?

The machine is conventional 201 stainless steel, the blade is steel, the conveyor belt is framed stainless steel, and the conveyor belt is made of PVC food grade material

How to clean the machine?

The raw materials are all kinds of nuts, and there is basically no residue. If the raw materials are rice crackers, there will be residues. The equipment can be washed down with a high-pressure air gun, and then wiped with a cloth and it is very clean.

Leave a Message

If you have any questions about our machine, please do not hesitate to contact us.
